Below is a range of connectors suitable for use in the marine environment. These connectors are of excellent quality and pressure rated. They are mainly used in hydrophone towed arrays but can be modified for use in other ways.
These connectors can be used with various pin arrangements by changing the inserts. Pleas contact us for further information if required.
New Detachable Connectors - for Design Projects 8 and 20 Element Single Channel Hydrophone Arrays.

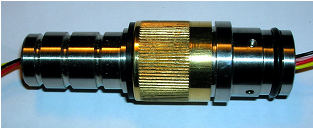

Detachable Connectors for multi-channel arrays - picture below (left) is an end sealing cap and lifting eye for a 30-pin connector used on a Military project.. Picture below (right) is a 30-pin custom made connector for the same project.

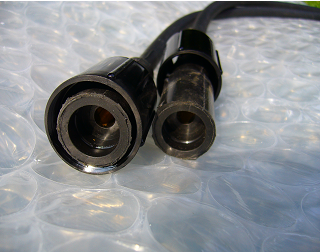

High Voltage Connectors - picture below is of 2 female HV connectors with locking collars.
Click on the image above to see Design Projects 500J Boomer plate and 20 Element Hydrophone Array being used on an offshore survey by Marine Geosolutions of South Africa
