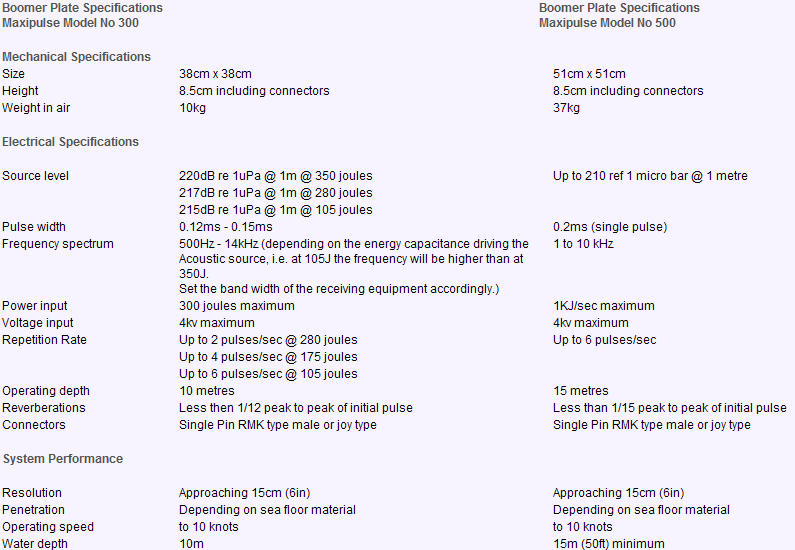

Maxipulse Boomer Plates

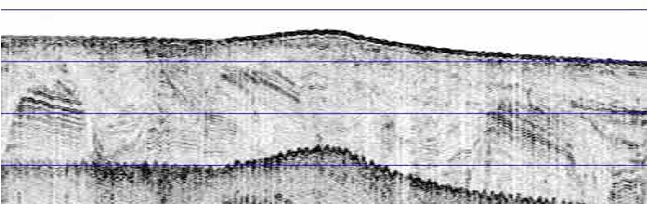

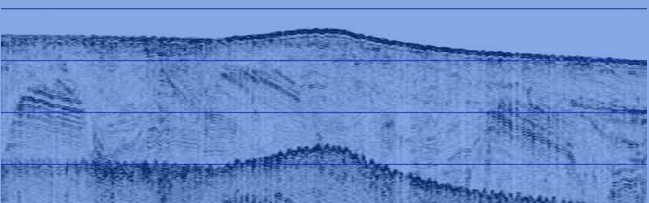

The Maxipulse Boomer transducer is one of a range produced by Design Projects to provide high resolution profiles of sub-bottom geology from just below the sea surface.

The current designs incorporate the latest advances in technology specifically in the areas of diaphragm design and coil cooling. This has lead to improvements in operability and performance of all units especially at high duty cycles.


Flexibility in design means completely integrated Maxipulse Boomers can be provided into dedicated Tow Vehicles as in the case of the Maxipulse Subtow Boomer Model STV200.
